DDR5 16GB 1R*8 5600 NB-Notebook Memory-SHENZHEN SUPERWAY ELECTRONICS CO.,LTD.

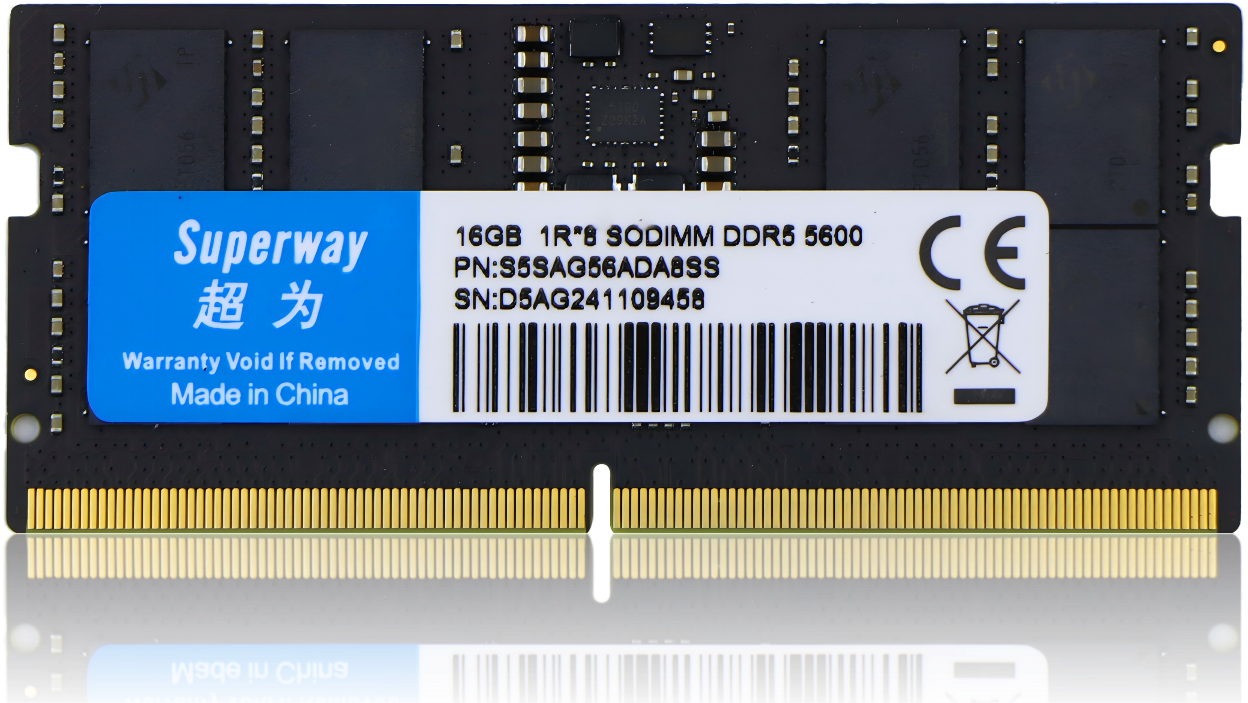

DDR5 16GB 1R*8 5600 NB

DDR5 next-generation memory module with 16GB capacity and 1R_8 chip layout. With an operating frequency of up to 5600MHz, it is built for laptops. DDR5 brings higher bandwidth and lower power consumption than DDR4, enabling smoother data transfer and reduced stuttering and loading lag when handling memory-bandwidth-demanding tasks such as 4K video playback and editing, high-quality game running, etc., while its lower power consumption helps extend the battery life of laptops, improve the overall user experience and performance, and provide stronger memory support for laptops in complex application scenarios in the future.

Description

• Performance advantages: ultra-high frequency ultra-fast, excellent in multiple scenarios.

• Technical highlights: new technology to improve performance, low voltage and high bandwidth.

• Compatibility: The new standard is gradually compatible, and the brand selection is wide.

• Application scenario: high-end local users, seeking extreme performance.

DDR	DDR5
Type	SO-DIMM
Capacity	8GB/16GB/32GB
PCB Color	Green(G)/Black(B)
Organization	1R8/2R8
Operating Frequency	4800MHz/5600MHz/6000MHz
Voltage	1.2V (±0.06V)
PINS	260 pin
Bus Width	64 Bits
PCB height	1.20mm±0.10mm
Operating Temperature	0℃~85℃
3µ”Gold Finger	Y
Anti vulcanization	Y
Applications	Laptop/Mini-PC/All-in-One PC/Small-scale Server
CL Timing	Different products vary
Performance	The higher the frequency, the faster the data transmission speed and the better the performance, but the actual performance is still affected by factors such as particle quality, motherboard, CPU, etc
